Features:

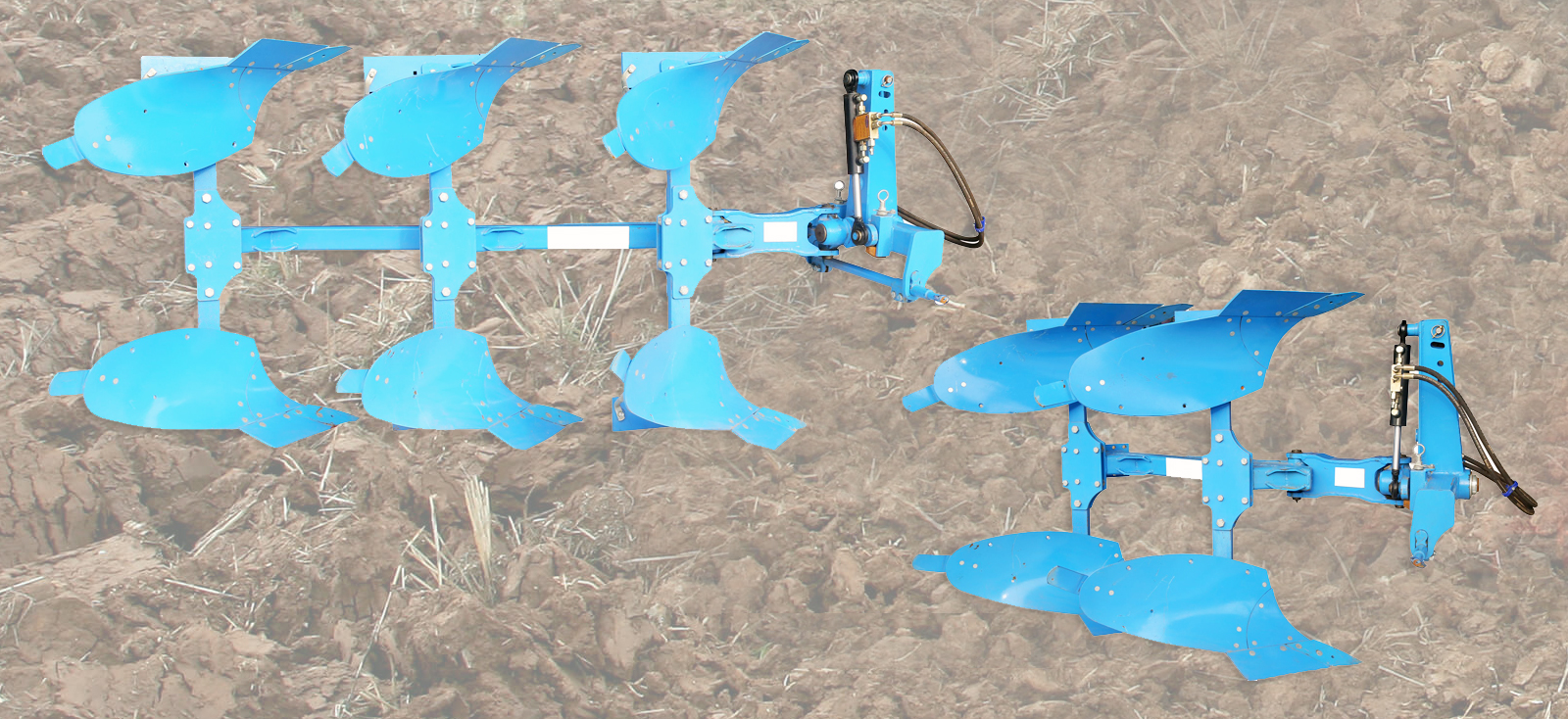

1. Its heavy duty frame has been designed in such a way that it retains its structural integrity even during the toughest
ploughing operations. Its weight is adequate for attaining the required ploughing depths. The frame has a unique rotating
mechanism which allows the farmer to rotate the furrows and finish the ploughing operation quickly.
2. Its high ground clearance allows the plough to deal with trashy conditions like crop residue, weeds etc.
3. The steel blades used in the plough have a unique chemical composition which ensures high longevity & efficient working
even after toughest ploughing operations.
4. The bar points can be adjusted till their last possible length, making the plough more economical to maintain.
5. The rotating mechanism comprises of minimum parts thereby making it economical for the farmer to maintain it.
Description |
NERMP-02 |
NERMP-03 |
NUMBER OF FURROWS |
2 |
3 |
FRAME (in mm) |
Heavy Duty Frame (97 x 97 x 9 T (Box)) |
|
TYNE (in mm) |
Profile Cut Single Piece 36 MM |
|
MOULD BOARD THICKNESS (in mm) |
8 |
|
PLOUGH SHARE (in mm) |
10 |
|
BAR POINT |
100 x 15 (forged) |
|
TURNOVER MECHANISM |
Hydraulic/ Manual (optional) |
|
WIDTH OF CUT (in mm) |
700 |
1050 |
DEPTH OF CUT (Max. in mm) |
355 |
|
SAFETY |
Shear Bolt |
|
WEIGHT (in Kg. approx) |
450 |
620 |
TRACTOR POWER (in HP) |
50 - 70 |
75 - 100 |
Note:*The weight and working data contained in the present website is supplied for information only and are not binding. Specification and size can be altered as part of ongoing product modification/improvement.
Note:*Company reserves the rights to change/amend products specifications without any prior notice.
