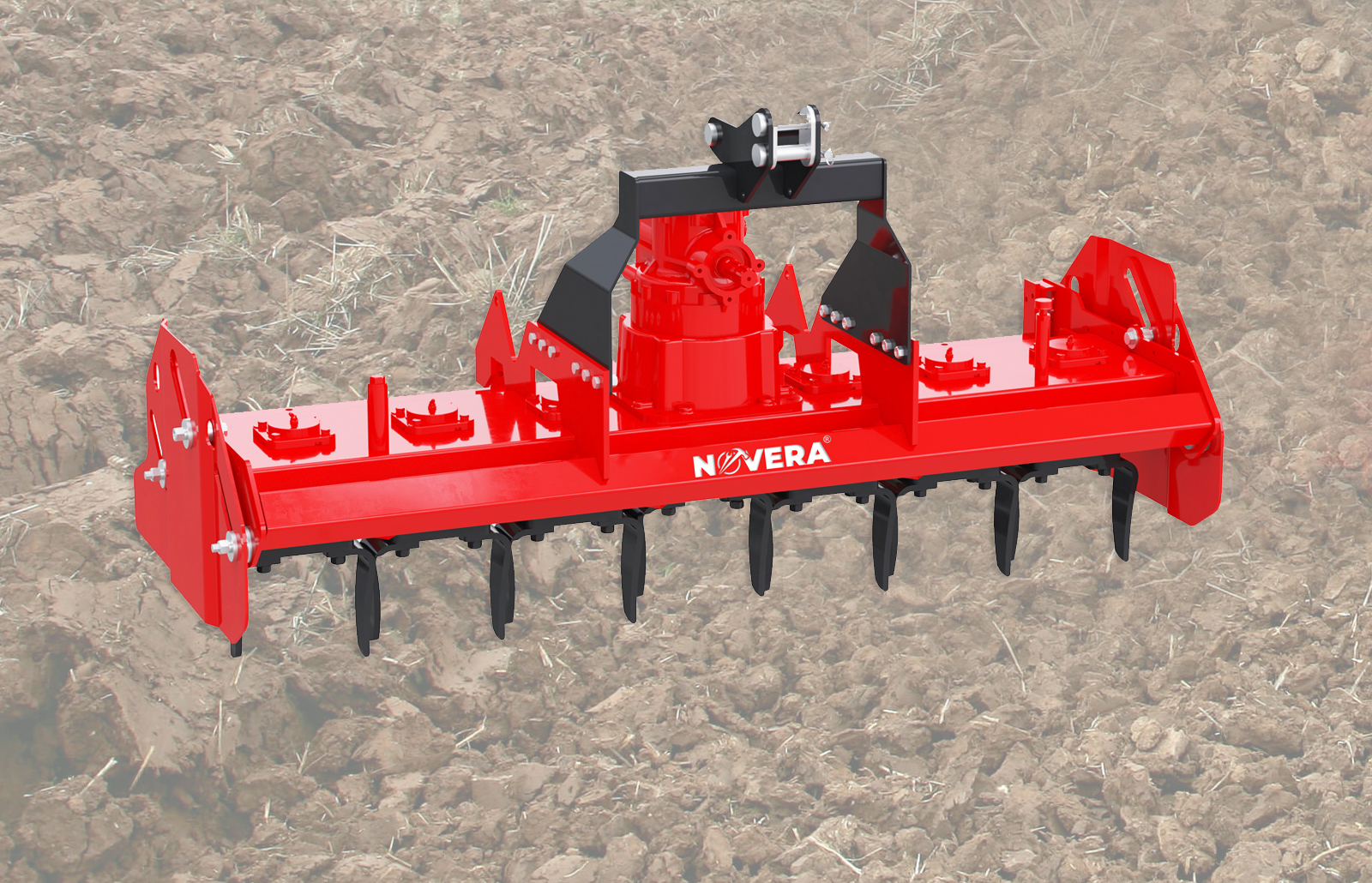

Power Harrow is used to turn, break, refine and even distribution of soil over the entire working width to create a perfect seed bed. It breaks up even the most compacted ground, often in single pass for preparing an area for plantation.
| Models/Description | NEPH- 75 |
NEPH- |
NEPH- |
NEPH- |
NEPH- |
NEPH- |
NEPH- |
NEPH- |
| Overall Length (mm) | 900 |
1145 |
1400 |
1635 1880 |
2125 |
2615 |
3105 |
|
| Overall Width (mm) | 950 |
950 |
950 |
950 950 |
950 |
950 |
950 |
|
| Overall Height (mm) | 1000 |
1000 |
1000 |
1000 1000 |
1000 |
1000 |
1000 |
|
| Working Width (mm). | 800 |
1000 |
1250 |
1500 1750 |
2000 |
2500 |
3000 |
|
| Tractor Power (H.P.) | 30 > |
40-45 |
50-55 |
55-60 60-65 |
740-80 |
80-90 |
90-110 |
|
| Three Point Hitch | CAT I I |
CAT I I |
CAT I I |
CAT I I CAT I I |
CAT I I |
CAT I I |
CAT I I |
|
| No. of Blades | 6 |
8 |
10 |
12 14 |
16 |
20 |
24 |
|
| Blade Dimension (mm) |
|
|
|
300 (L) X 12 (T) |
|
|
|
|
| Body frame Thickness (mm) | 4 MM |
5 MM |
6 MM |
|||||
| Max. Working Depth (mm) |
|
|
|
210 MM |
|
|
|
|
| PTO input speed (RPM) |
|
|
|
540 RPM |
|
|
|
|
| Depth control |
|
|
|
Yes |
|
|
|
|
| Weight (Approx. Kgs) | 290 |
340 |
390 |
430 470 |
510 |
570 |
630 |
|

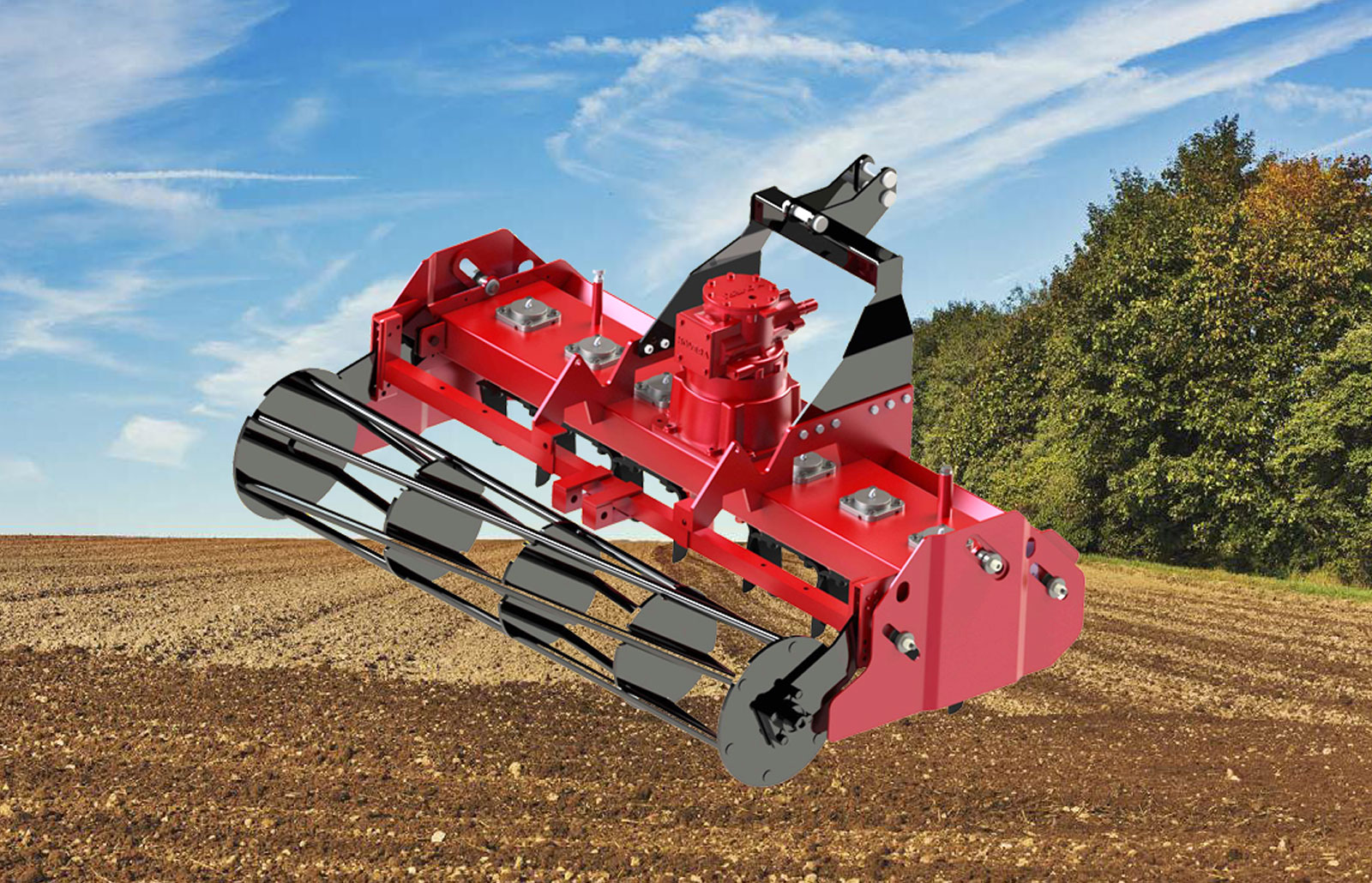

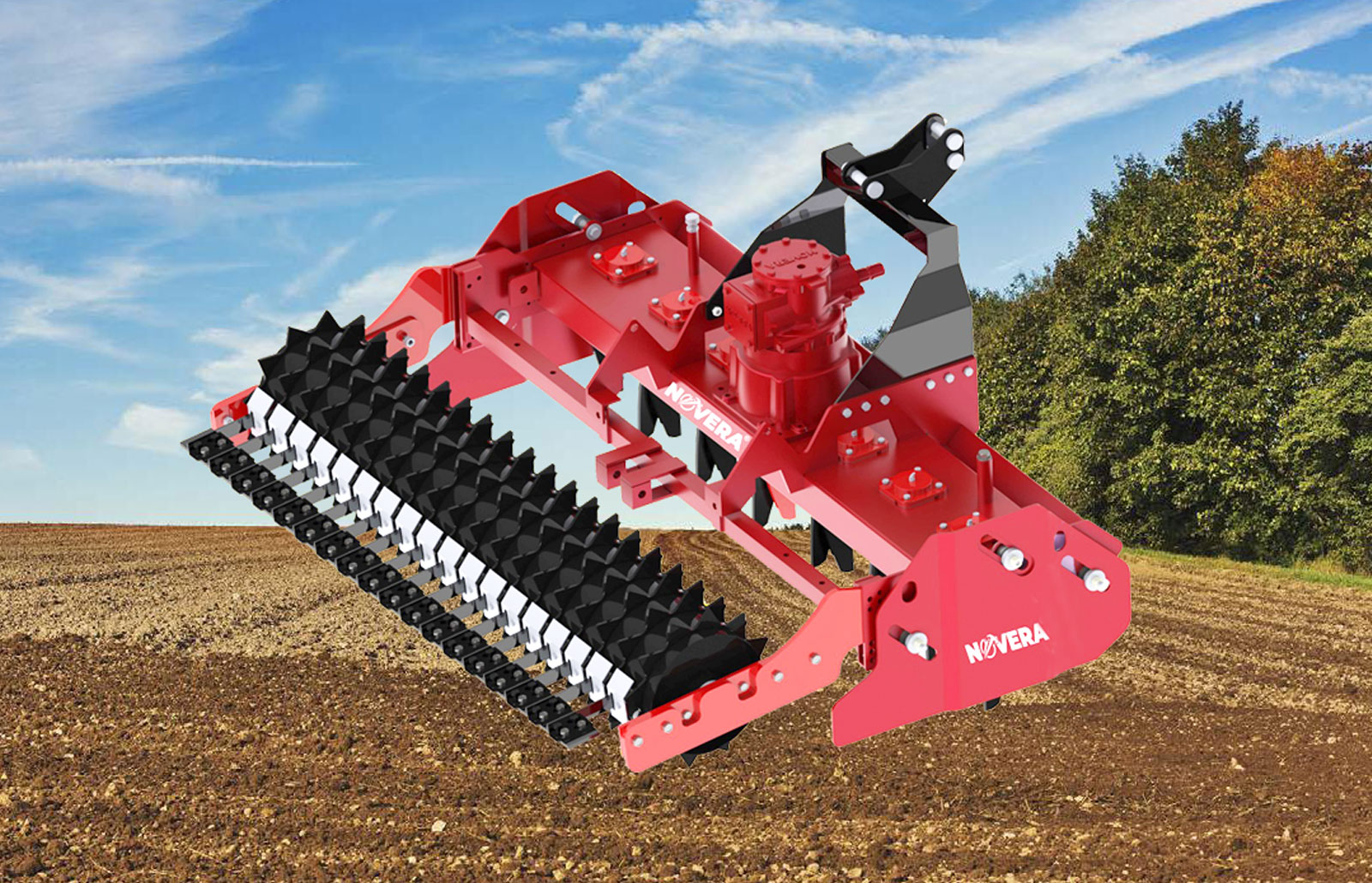

| Optional Attachments | Rear Rollers (Packer & Cage Type) |
|||||||
Note:*The weight and working data contained in the present website is supplied for information only and are not binding. Specification and size can be altered as part of ongoing product modification/improvement.
Note:*Company reserves the rights to change/amend products specifications without any prior notice.
