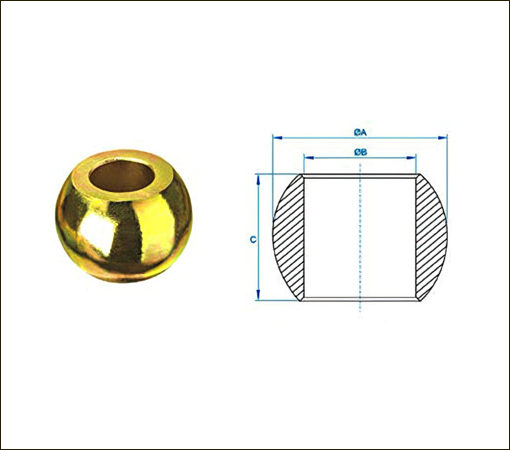

BALL WITHOUT COLLAR (HEAT TREATED 40-45 HRC - OPTIONAL)
BORE TOLERANCE A12/A13
CODE	B	A	C
NELLB2028	16	28	20
NELLB2029	16	32	25.4
NELLB2030	19	44	35
NELLB2031	22.1	44	35
NELLB2032	22.1	48	35
NELLB2033	28.4	48	35
NELLB2034	25.4	50	38
NELLB2035	25.4	50	40
NELLB2036	28.4	50	38
NELLB2037	35	54	35
NELLB2038	22.1	56	35
NELLB2039	22.1	56	45
NELLB2040	25.4	56	35
NELLB2041	25.4	56	45
NELLB2042	28.4	56	35
NELLB2043	28.4	62	45
NELLB2044	28.4	63.5	45
NELLB2045	28.4	64	45
NELLB2046	28.4	64	54
NELLB2047	37.1	64	45
NELLB2048	38	64	45
NELLB2049	37	85	57
NELLB2050	51	85	57

Note:*The weight and working data contained in the present website is supplied for information only and are not binding. Specification and size can be altered as part of ongoing product modification/improvement.

Note:*Company reserves the rights to change/amend products specifications without any prior notice.

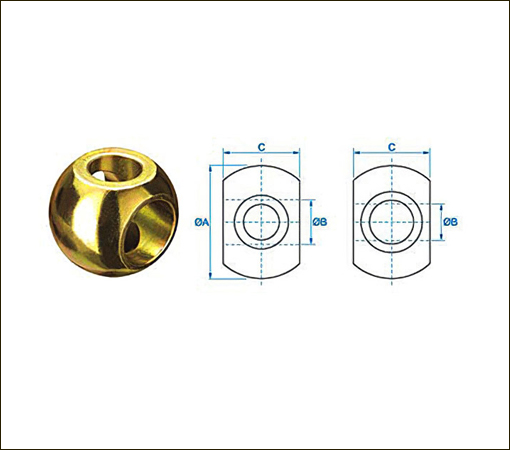

BALL (DOUBLE BORE) (3 POINT COMPLETE ARM)
CODE	A	B	C
NEBDD51CA	56	22.1/28.7	44.5

Note:*The weight and working data contained in the present website is supplied for information only and are not binding. Specification and size can be altered as part of ongoing product modification/improvement.

Note:*Company reserves the rights to change/amend products specifications without any prior notice.

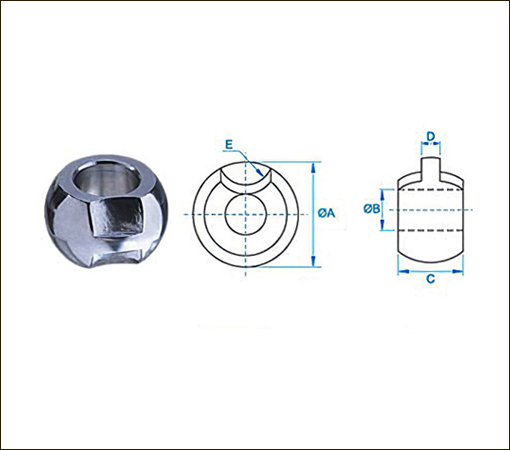

BALL(WITH CUT)
CODE	A	B	C	D	E
NEBAWC41	56.5	22	35	10	R35
NEBAWC42	56.5	28.6	44.5	10	R35

Note:*The weight and working data contained in the present website is supplied for information only and are not binding. Specification and size can be altered as part of ongoing product modification/improvement.

Note:*Company reserves the rights to change/amend products specifications without any prior notice.

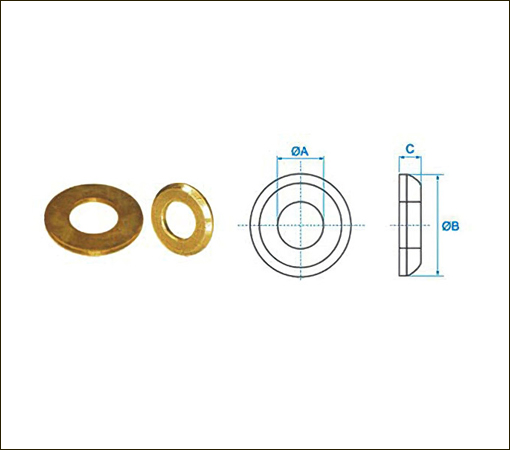

SPACERS
CODE	A	B	C
NESP001	28	56	7
NESP002	28	64	7
NESP003	38	64	7
