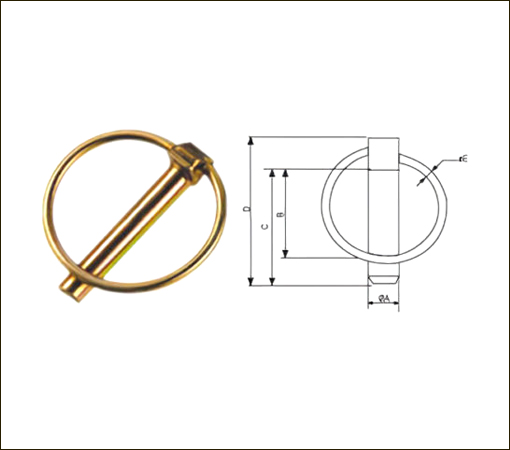

LINCH PIN |
|||||
CODE |
A |
B |
C |
D |
E |
NELP5634 |
4.5 |
28.6 |
35 |
44 |
3 |
NELP5635 |
4.5 |
33 |
40 |
48 |
3 |
NELP5636 |
6 |
36.5 |
45 |
54 |
3.2 |
NELP5637 |
6 |
60 |
70 |
80 |
3.5 |
NELP5638 |
7 |
36.5 |
45 |
55 |
3.3 |
NELP5639 |
8 |
36.5 |
45 |
54 |
3.3 |
NELP5640 |
8 |
60 |
70 |
80 |
3.5 |
NELP5641 |
9 |
36.5 |
45 |
56 |
3.3 |
NELP5642 |
10 |
36.5 |
45 |
56 |
3.5 |
NELP5643 |
10 |
42 |
51 |
62 |
3.5 |
NELP5644 |
10 |
36.5 |
45 |
56 |
3.5 |
NELP5645 |
11 |
39 |
51 |
61 |
3.5 |
NELP5646 |
12 |
36.5 |
45 |
56 |
3.5 |
Note:*The weight and working data contained in the present website is supplied for information only and are not binding. Specification and size can be altered as part of ongoing product modification/improvement.
Note:*Company reserves the rights to change/amend products specifications without any prior notice.

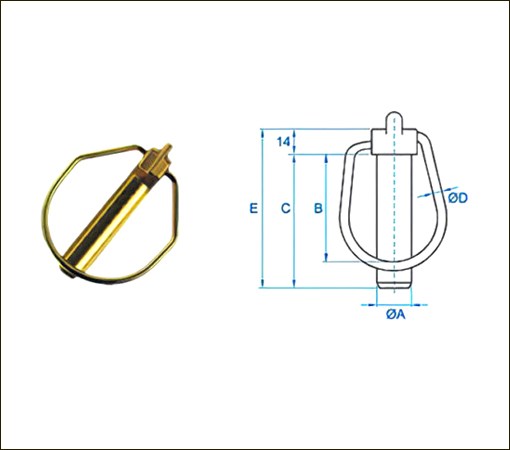

LINCH PIN DIN 11023 |
|||||
CODE |
A |
B |
C |
D |
E |
NELP6677 |
4.5 |
32 |
25 |
31 |
2.5 |
NELP6679 |
7.5 |
42 |
32 |
44.8 |
3.6 |
NELP6680 |
9.5 |
45 |
32 |
44.8 |
3.6 |
NELP6681 |
11 |
45 |
32 |
44.8 |
3.6 |
NELP6682 |
11 |
55 |
45 |
52 |
4 |
NELP6683 |
16 |
60 |
45 |
52 |
4 |
Note:*The weight and working data contained in the present website is supplied for information only and are not binding. Specification and size can be altered as part of ongoing product modification/improvement.
Note:*Company reserves the rights to change/amend products specifications without any prior notice.

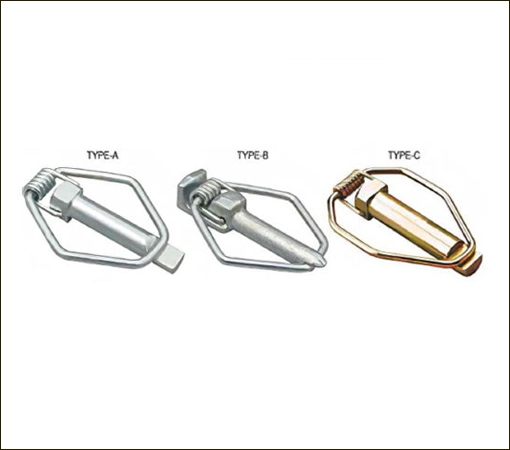

SPRING LINCH PIN |
||
CODE |
DIA |
TYPE |
NELP7878 |
8.5 |
A |
NELP7879 |
10.5 |
A |
NELP7880 |
11 |
B |
NELP7881 |
15.5 |
C |
Note:*The weight and working data contained in the present website is supplied for information only and are not binding. Specification and size can be altered as part of ongoing product modification/improvement.
Note:*Company reserves the rights to change/amend products specifications without any prior notice.

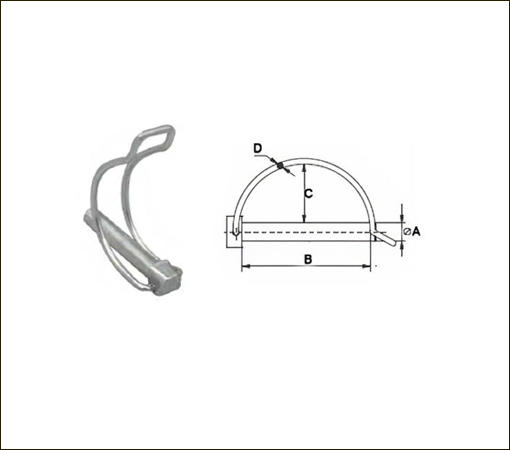

PIPE LINCH PIN |
||||
CODE |
A |
B |
C |
D |
NELPP9901 |
4.5 |
40 |
18 |
3 |
NELPP9902 |
6 |
32 |
18 |
3 |
NELPP9903 |
8 |
40 |
18 |
3 |
NELPP9904 |
8 |
45 |
22 |
3 |
NELPP9905 |
8 |
40 |
18 |
3 |
NELPP9906 |
8 |
45 |
22 |
3 |
NELPP9907 |
8 |
50 |
25 |
3 |
NELPP9908 |
8 |
60 |
28 |
3 |
NELPP9909 |
10 |
40 |
25 |
3 |
NELPP9910 |
10 |
50 |
25 |
3 |
NELPP9911 |
10 |
60 |
28 |
3 |
NELPP9912 |
10 |
70 |
28 |
3 |
Note:*The weight and working data contained in the present website is supplied for information only and are not binding. Specification and size can be altered as part of ongoing product modification/improvement.
Note:*Company reserves the rights to change/amend products specifications without any prior notice.

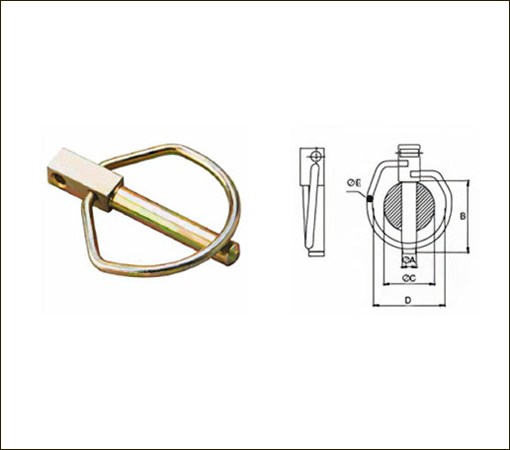

SQUARE HEAD LINCH PIN WITH CHAIN FOR PIPE |
||||
CODE |
A |
B |
C |
D |
NELPSC675 |
12 |
48 |
44 |
4 |
NELPSC677 |
14 |
48 |
44 |
4 |
NELPSC682 |
16 |
50 |
44 |
4 |
NELPSC689 |
19 |
60 |
48 |
4 |
Note:*The weight and working data contained in the present website is supplied for information only and are not binding. Specification and size can be altered as part of ongoing product modification/improvement.
Note:*Company reserves the rights to change/amend products specifications without any prior notice.
FORGED LINCH PIN |
|||||
CODE |
A |
B |
C |
D |
E |
NELP001F |
11 |
48 |
52 |
4 |
66 |
NELP002F |
15 |
56 |
60 |
4 |
74 |
Note:*The weight and working data contained in the present website is supplied for information only and are not binding. Specification and size can be altered as part of ongoing product modification/improvement.
Note:*Company reserves the rights to change/amend products specifications without any prior notice.

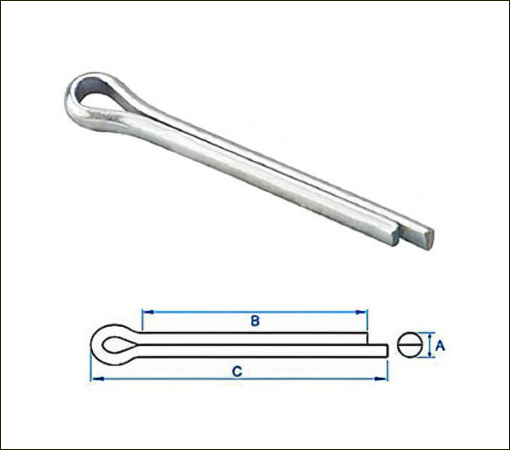

SPLIT PINS |
|||
CODE |
A |
B |
C |
NESPS9001 |
1.6 |
20 |
28 |
NESPS9002 |
1.6 |
25 |
33 |
NESPS9003 |
2 |
20 |
28 |
NESPS9004 |
2 |
25 |
33 |
NESPS9005 |
2 |
28 |
35 |
NESPS9006 |
2 |
32 |
40 |
NESPS9007 |
2 |
40 |
50 |
NESPS9008 |
2.5 |
20 |
28 |
NESPS9009 |
2.5 |
40 |
50 |
NESPS9010 |
3.2 |
25 |
35 |
NESPS9011 |
3.2 |
40 |
50 |
NESPS9012 |
4 |
25 |
35 |
NESPS9013 |
4 |
32 |
45 |
NESPS9014 |
4 |
36 |
48 |
NESPS9015 |
5 |
50 |
63 |
NESPS9016 |
5 |
70 |
85 |
NESPS9017 |
6.3 |
50 |
64 |
NESPS9018 |
6.3 |
70 |
85 |
NESPS9019 |
6.3 |
80 |
98 |
NESPS9020 |
8 |
63 |
87 |
NESPS9021 |
8 |
80 |
104 |
NESPS9022 |
8 |
100 |
124 |
NESPS9023 |
8 |
125 |
150 |
NESPS9024 |
10 |
63 |
91 |
NESPS9025 |
10 |
125 |
153 |
NESPS9026 |
15 |
125 |
160 |
NESPS9027 |
13 |
140 |
175 |
Note:*The weight and working data contained in the present website is supplied for information only and are not binding. Specification and size can be altered as part of ongoing product modification/improvement.
Note:*Company reserves the rights to change/amend products specifications without any prior notice.
