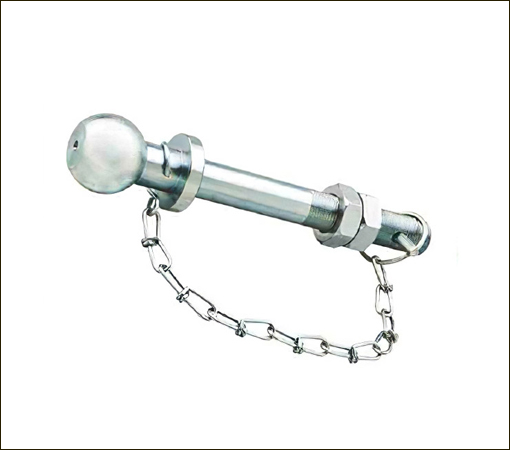

HITCH PIN BALLS
CODE	DIA. A (mm)	THREAD DIA. B (inches)	C (mm)	D (mm)	E (mm)
NEHPB3602	50	7/8"	100	162	190
NEHPB3603	50	1"	100	162	190

Note:*The weight and working data contained in the present website is supplied for information only and are not binding. Specification and size can be altered as part of ongoing product modification/improvement.

Note:*Company reserves the rights to change/amend products specifications without any prior notice.

HITCH BALL/ TOW BALLS
CODE	DIA. A (mm)	THREAD DIA. B (inches)	C (mm)	MAX. LOAD (Kgs.)
NEHPB3604	47.8	3/4" 16 UNF	54	900
NEHPB3605	50.8	3/4" 16 UNF	54	1600
NEHPB3606	50.8	1" 12 UNF	54	2300
NEHPB3607	58.68	1-1/4" 12 UNF	54	3400

Note:*The weight and working data contained in the present website is supplied for information only and are not binding. Specification and size can be altered as part of ongoing product modification/improvement.

Note:*Company reserves the rights to change/amend products specifications without any prior notice.
