draw bars, tractor draw bars

Tractor Linkage Parts

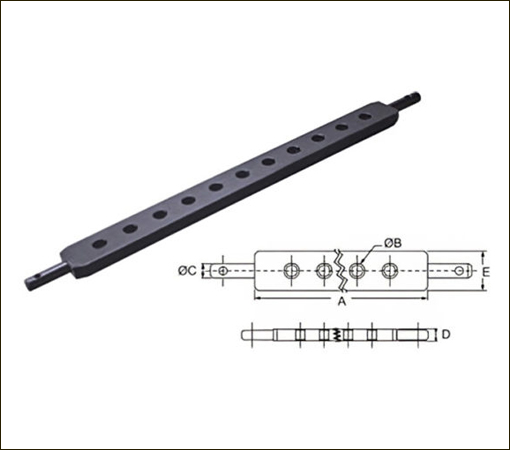

DRAW BAR

DRAWBARS (63 x 25)
CODE	NO. OF HOLES	A (mm)	B (mm)	C (mm)	DIA. D (mm)	DIA. E (mm)	F (mm)	G (mm)
NEDB750	3	580	50	480	22	22	120	120
NEDB751	4	420	57	306	22	22	66	58
NEDB752	5	540	50	440	22	22	80	70
NEDB753	7	610	51	508	22	22	83	57
NEDB754	7	610	51	508	16	16	74	60
NEDB755	7	780	54	672	22	22	97.5	80
NEDB756	9	660	57	546	22.2	19.5	76	63.5
NEDB757	9	775	57	661	22	22	114	54
NEDB758	11	774	57	660	22	19	75	51
NEDB759	11	775	57.5	660	22	22.4	75	51

Note:*The weight and working data contained in the present website is supplied for information only and are not binding. Specification and size can be altered as part of ongoing product modification/improvement.

Note:*Company reserves the rights to change/amend products specifications without any prior notice.

Tractor Linkage Parts

DRAW BAR

DRAWBARS (63 x 30)
CODE	NO. OF HOLES	A (mm)	B (mm)	C (mm)	DIA. D (mm)	DIA. E (mm)	F (mm)	G (mm)
NEDB800	3	440	55	330	22	20	110	55
NEDB801	5	505	52.5	400	22	19.5	68	66
NEDB802	5	510	53	404	22	20	94	54
NEDB803	5	540	70	400	28	22	70	65
NEDB804	5	540	55	430	28	20	75	70
NEDB805	5	570	85	400	28	22	70	65
NEDB806	7	510	55	400	22	20	35	55
NEDB807	7	550	53	444	22	20	113	54
NEDB808	7	613	51	511	22	19	85	57
NEDB809	7	648	49	550	22	20	113	54
NEDB810	7	680	51	578	22	20	115	58

Note:*Company reserves the rights to change/amend products specifications without any prior notice.

Tractor Linkage Parts

DRAW BAR

DRAWBARS (76 x 32)
CODE	NO. OF HOLES	A (mm)	B (mm)	C (mm)	DIA. D (mm)	DIA. E (mm)	F (mm)	G (mm)
NEDB811	5	861	60.5	740	28.4	27	140	115
NEDB812	6	800	58	684	28.4	20	104.5	95
NEDB813	7	750	55	640	28	25.5	80	80
NEDB814	7	876	50	776	28	28	100	96
NEDB815	7	890	64	762	28	29	126	85
NEDB816	7	890	55	780	28	28	124	88.59999999999999
NEDB817	7	925	50	825	28.4	25	172.5	80
NEDB818	7	930	55	820	28	28	110	100
NEDB819	7	930	55	820	28	26	85	109
NEDB820	7	932	62	807	28	26	49.5	86.2
NEDB821	7	940	60	820	28.4	28.5	152	86
NEDB822	7	940	55	830	28	30(2), 26(5)	85	110
NEDB823	7	940	55	830	28	26	85	110
NEDB824	7	981	60	861	28.4	28.5	154.5	92
NEDB825	9	800	70	660	28	28.4	70	65
NEDB826	9	910	55	880	28	25.5	80	80
NEDB827	9	945	60	825	28	22	92.5	80
NEDB828	9	945	60	825	28	33	92.5	80
NEDB829	9	962	51	860	28.5	33	110	80
NEDB830	9	980	55	870	28	25.5	87	87
NEDB831	11	825	55	715	28	22	87.5	65
NEDB832	11	932	60	812	28	28	86	64
NEDB833	11	933	55	823	28	22	86.5	65
NEDB834	11	933	60	813	28	28.5	81.5	65
NEDB835	11	960	55	850	28	26	100	65
NEDB836	11	960	55	850	28	22	100	65
NEDB837	11	960	62	836	28	28	78	68
NEDB838	13	932	60	812	28	19	76	55
NEDB839	13	940	60	820	28	19	76	55.6
NEDB840	13	940	60	820	28	22.4	76	55.6

Note:*Company reserves the rights to change/amend products specifications without any prior notice.

Tractor Linkage Parts

DRAW BAR

DRAWBARS (80 x 40)
CODE	NO. OF HOLES	A (mm)	B (mm)	C (mm)	DIA. D (mm)	DIA. E (mm)	F (mm)	G (mm)
NEDB841	3	770	56	658	28.5	26.5	164.5	164.5
NEDB842	3	960	55	850	28	28.5	212.5	141.5
NEDB843	5	1000	60	880	28	28	160	140
NEDB844	5	1084	60	964	28.5	26	202	140
NEDB845	6	890	63	764	28	28	132	100
NEDB846	7	862	60	742	28.5	26	122	83
NEDB847	7	930	55	820	28	28.5	102.5	102.5
NEDB848	7	934	57	820	28	28	110	100
NEDB849	7	940	60	820	28.5	26	125	95
NEDB850	7	1085	60	965	36	33	152.5	110
NEDB851	7	1094	65	946	36	32	152	110

Note:*Company reserves the rights to change/amend products specifications without any prior notice.
